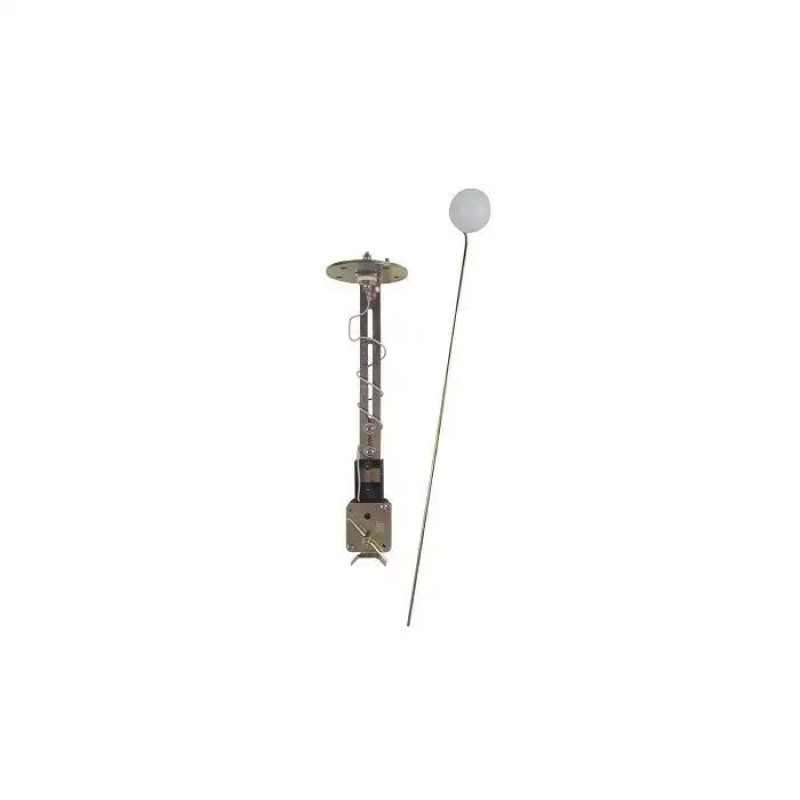

Gas Tank Sending Unit,73-10 Ohm

• 5-Bolt Standard SAE Flange Fits Most Aftermarket And Some Original Tanks
• Adjustable For 5" - 24" Deep Tank
• For Use With 0-90 Ohm Gauge
• Instructions Included

These universal fuel tank senders have a range of 73-10 Ohms, which is the range that factory Ford, Mercury, and Edsel in-dash gas gauges 1986 and older expect to receive. The flange is the standard SAE 5-hole bolt pattern seen on countless aftermarket fuel tanks. The 5-holes are not evenly spaced. Two of the holes are farther apart than the other holes. They work on fuel tanks from 6 to 24 inches deep by cutting to length using the instructions included. Since fuel tank senders only read resistance to ground they work on all 6-24 volt systems positive or negative ground. They do not have a fuel pickup tube built into them as some original senders may have. You will be pleased to know they have a high quality ceramic board rheostat for a long life.

NOTE: Many aftermarket gauges need a 0-90 Ohm range. We offer those in another listing.

Universal 5-Hole Fuel Tank Sending Unit, 73-10 Ohm Range
